Available From Stock in 11 Sizes

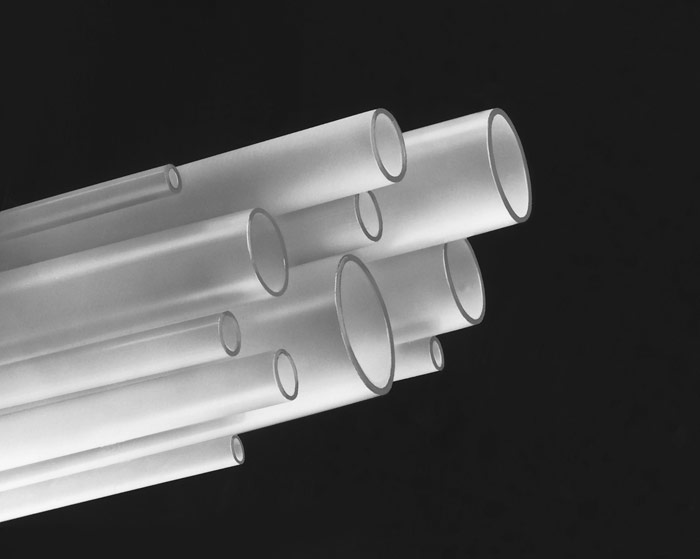

SOLEF® PVDF Tubing is the engineering grade thermoplastics material of choice for applications requiring high purity and exceptional corrosion resistance properties.

A stock tubing extruded from the highest quality Solef 460 Polyvinylidene Fluoride resin, an extremely versatile engineering fluoropolymer with a unique balance of physical, chemical and electrical properties.

Featured Properties of SOLEF:

  • Temperature range from -40°F to 260°F
  • High purity – FDA Approved resin
  • Resistant to most chemicals and solvents
  • High abrasion resistance
  • Mechanical strength and toughness
  • High dielectric strength
  • Resistance to ultraviolet and nuclear radiation
  • Resistant to weathering and fungi
  • Natural translucent color

SOLEF thermoplastic fluoropolymer is strong and tough as exhibited by its tensile and impact strength. Compared to many thermoplastics, SOLEF has excellent resistance to creep and fatigue. It is non-toxic, tasteless and odorless.

SOLEF ® is a registered trademark of Solvay Specialty Polymers, LLC.

Stock Sizes – 50 Ft. Coil Lengths
Part No. ID (Inches) OD (Inches) Wall (Inches) Max Pressure PSI@70°F
HK-01 1/8 1/4 1/16 350
HK-02 .170 1/4 .40 180
HK-03 3/16 5/16 1/16 290
HK-04 1/4 3/8 1/16 240
HK-05 5/16 7/16 1/16 200
HK-06 3/8 1/2 1/16 180
HK-07 1/2 5/8 1/16 145
HK-08 5/8 3/4 1/16 120
HK-09 3/4 7/8 1/16 100
HK-10 7/8 1 1/16 90
HK-11 1 1.25 1/8 140
General Properties of SOLEF® 460 Grade Polymer
Method Units Typical Values or Ranges
Physical Properties
Melting Point Range ASTM D3418 °F 320
°C 160
Specific Gravity 1.75-1.77
Refractive Index ASTM D542 °25D 1.42
Water Absorption ASTM D570 % 0.04
Specific Gravity 1.75-1.77
Mechanical Properties
Tensile Strength at Yield ASTM D638 psi 6000-6500
Tensile Strength at Break ASTM D638 psi 5000-7500
Elongation at Yield ASTM D638 % 8-15
Elongation at Break ASTM D638 % 50-250
Tensile Modulus ASTM D882 psi 150-200X103
Flexural Modulus ASTM D790 psi 150-260X103
Impact Strength at room temp. ASTM D256
Unnotched ft-lb/in% 15-40
Notched ft-lb/in 2-4
Hardness ASTM D2240 Shore D 75-80
Thermal Properties
Limiting Oxygen Index ASTM D2863 % 43
Vertical Burn UL Bulletin 94 V-O
